N1804DA/JXZ

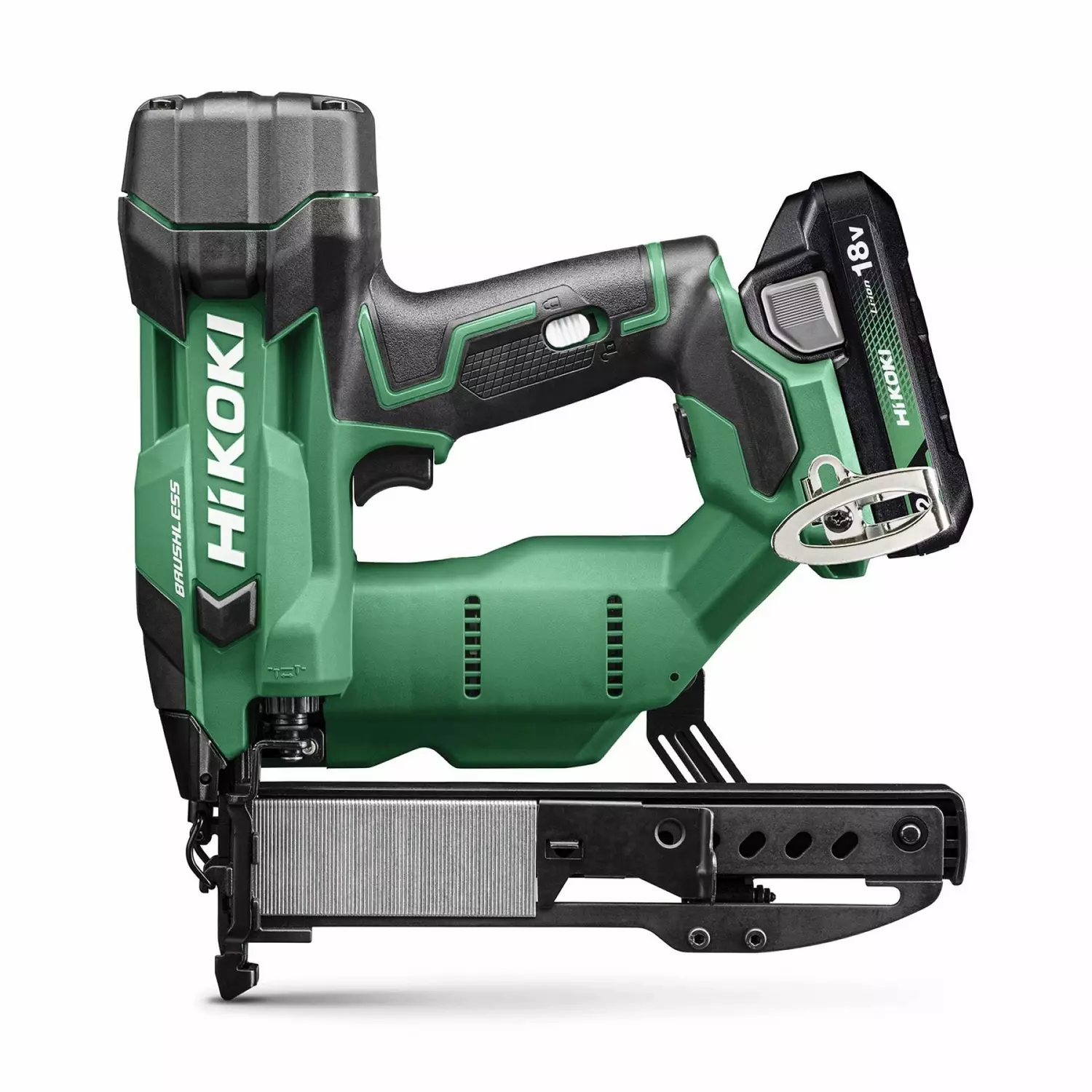

18V Cordless Narrow Crown Stapler

 Bryant Fixings Recommends:

• Lightest and most compact narrow crown stapler

• High freedom of movement and lower costs:

• No need for compresors, hoses or gas canister

• Steady stapling performance even with colder temperatures

• Easy on the human body; no exhaust gas odors and explosive sounds

• Selectable firing modes: sequential or bump fire mode for highest

  accuracy and fastest work progress

• Easy toolless driving depth adjustment

• Quick jam release for toolless removal of jammed staples

• Lightweight and well-balanced body keeps the centre of gravity

• close to the handle for easy operation

• LED light for illuminating dark work spaces

• Air Spring Drive System; no need for compressors, hoses or gas canisters.

• Zero ramp-up time, low recoil, consistent high power and high freedom of

  movement



 Product Features

• Voltage 18V
• Motor type Brushless
• Driving mechanism Air Spring Drive System
• Applicable staples Crown width 5.7 mm
• Wire thickness 1 x 1.25 mm (18 Gauge)
  Length 12-40 mm
• Magazine capacity 100 staples
• Quick stapling speed Up to 2 staples /sec.
• Selectable firing modes Single, sequential/contact
• Driven staples per charge1 1,000
• Toolless depth control Yes
• LED light Yes
• Hook Yes
• Vibration level 2.3 m/s2
• Noise level 86 dB
• Dimensions (H x L) 286 x 275 mm
• Tool weight 2.0 kg
• Weight with battery1 2.4-3.0 kg

Includes:

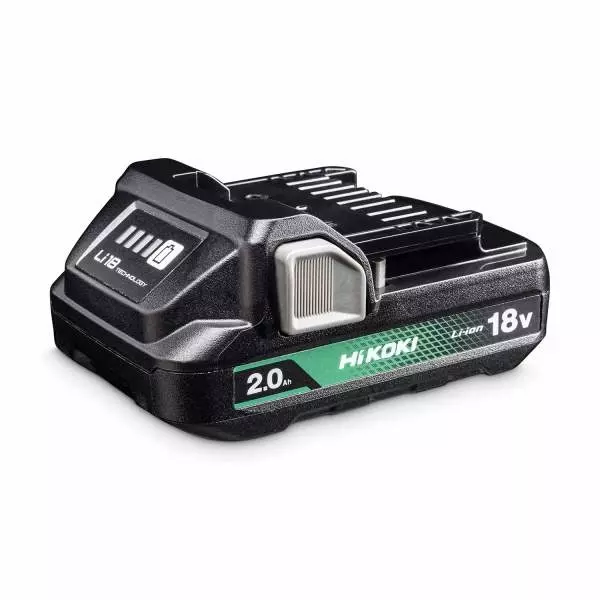

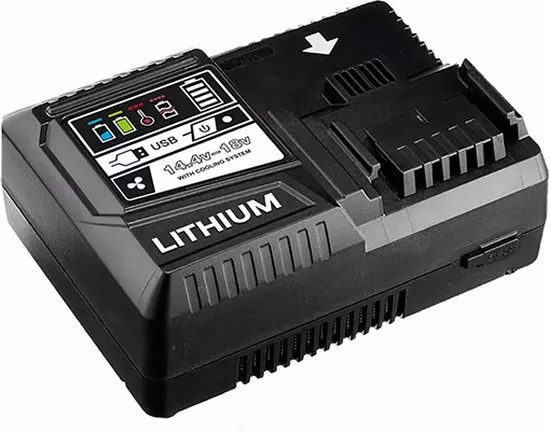

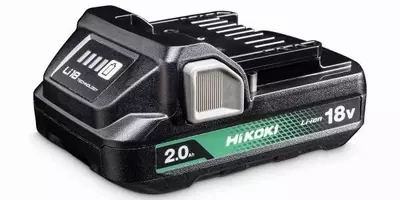

• 2x battery BSL1820M, charger UC18YFSL,
  nose cap, stackable case HSC III
